hiplex 8400H GR100 Intrusion Alarm Panel

hiplex 8400H GR100

Intrusion alarm control panel

VSÖ class WS (W 170918/02 E) Burglar detector control panel
VSÖ class WS (W 170918/03 E) Switchgear
VdS class C (G 117001) Burglar detector control panel
VdS class C (G 117002) Switchgear
EN 50131-3: Grade 3

The hiplex 8400H is a burglar alarm control panel in accordance with the provisions, regulations and guidelines DIN EN 50131 grade 3, VdS class C, VDE 0833 and the ÜEA guidelines of the police.

The intrusion alarm control panel is suitable for use in the commercial, industrial and private sectors.
Different housing types are available for the different expansion levels.
The reader interface for connecting comlock/cryplock readers can be used not only as a switching device but also for access control.
The intrusion detector control panel is installed in a sturdy, sealable sheet steel housing with cable entries.
The power supply 12 V / 34 Ah is integrated on the central board. A mounting station is available for the installation of a TELENOT transmission device. The telephone junction box can be covered with the burglar alarm panel.
With the BuildSec alarm system app, it is possible to operate and display operating states in the burglar alarm control panel via smartphone and tablet. Supported operating systems are iOS and Android.

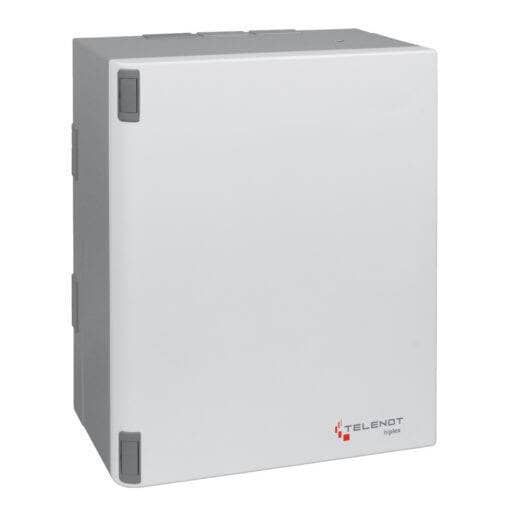

Hiplex 8400H intrusion alarm control panel in GR100 housing type.
A breakaway detector is available as an accessory for tamper detection when removing it from the mounting surface.
