Dahua DH-IPC-HDBW5831RP-ZE Dome 8MP Ü Camera

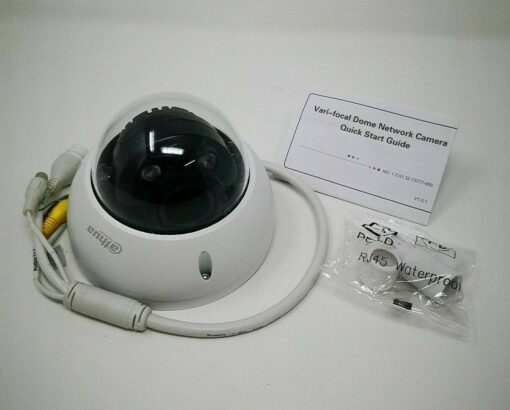

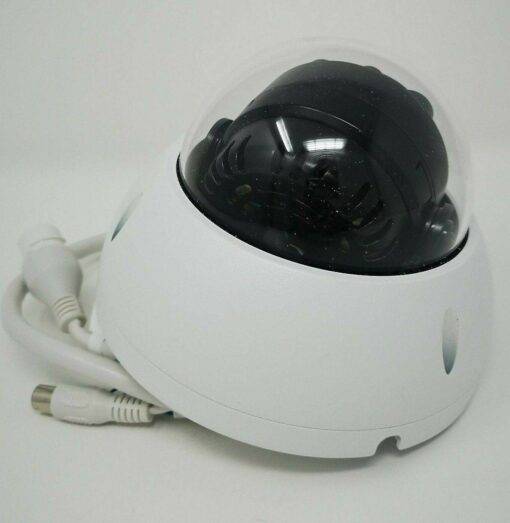

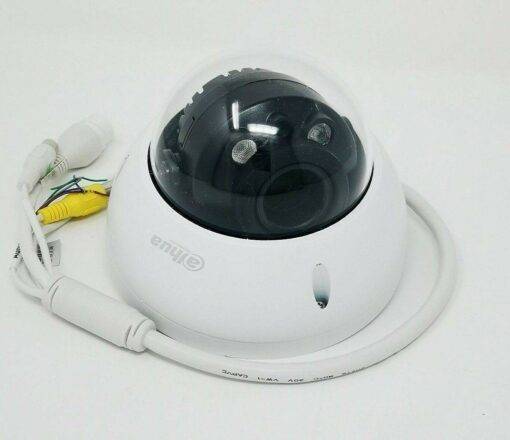

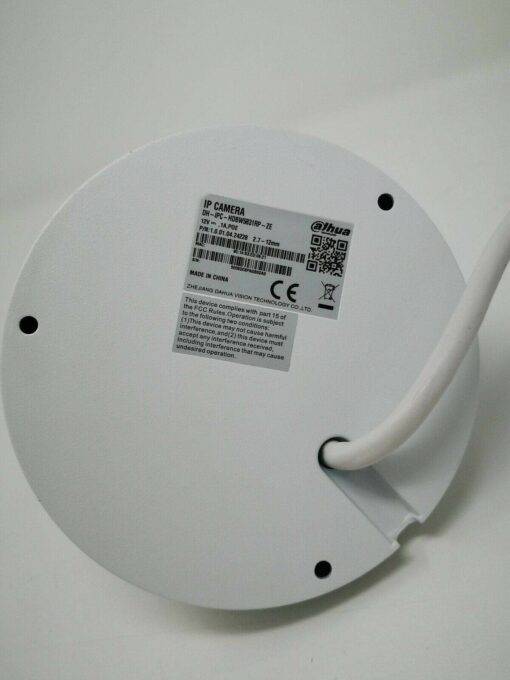

Dahua DH-IPC-HDBW5831RP-ZE Dome 8MP Security Camera
2 in stock
Dahua DH-IPC-HDBW5831RP-ZE Dome 8MP Security Camera
| Item Condition: | Used : |
|---|---|
| Seller’s notes: | “Goods tested – works perfectly“ |
| Brand: | Dahua | Product: | Minsters |
| Model: | Dahua 8MP IP Dome Camera | Maximum resolution: | 3840 x 2160 |
| Monitoring Technology: | IP/Network | Application: | Indoors/outdoors |

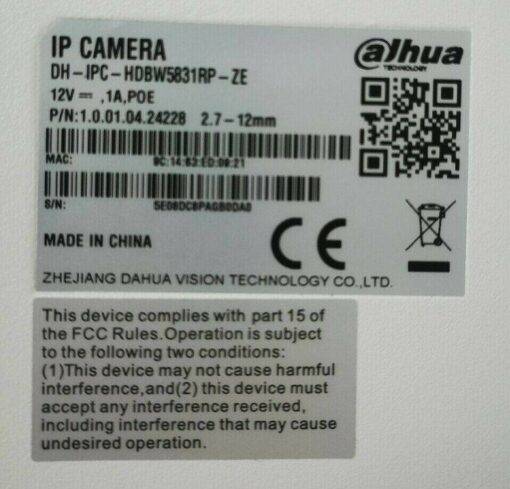

| Manufacturer Part Number: | DH-IPC-HDBW5831RP-ZE | EAN: | Not applicable |
IP camera with a powerful H.264/H.265/MJPEG image compression algorithm that allows for cleaner and smoother image transmission in a maximum resolution of 3840 x 2160 (8.3 MPx). Thanks to this, it is ideal for surveillance systems where the identification of people or vehicles is necessary.
The applied motozoom lens with focal length 2.7 … 12 mm allows remote control of the viewing angle.
The range of lighting specified by the manufacturer depends on the environmental conditions (air transparency, environment, wall colour, i.e. the so-called współczynnika odbicia sceny).
The compatibility of the camera with the ONVIF standard guarantees the possibility of its use in various IP surveillance systems compatible with this interface, regardless of the manufacturer.
The possibility of PoE power, according to the 802.3af standard, makes the device even more universal and easier to install.
The device is equipped with ePoE technology, which enables transmission up to 800 m at a speed of 10 Mb/s or 300 m at a speed of 100 Mb/s via twisted-pair cable Cat. 5.
SPECIFICATION
Standard: TCP/IP
Sensor: 1/2.5″ Progressive Scan CMOS
Matrix size: 8.3 Mpx
Resolution:
3840 x 2160 – 8.3 Mpx, 4K UHD ,
3072 x 2048 – 6.3 Mpx ,
3072 x 1728 – 5.3 Mpx
2592 x 1944 – 5.0 Mpx ,
2688 x 1520 – 4.0 Mpx ,
2560 x 1440 – 3.7 Mpx ,
2304 x 1296 – 3.0 Mpx ,
1920 x 1080 – 1080p
1280 x 1024 – 1.4 Mpx
1280 x 960 – 1.3 Mpx
1280 x 720 – 720p
Modes:
Main and auxiliary power can occur in any configuration
Firmware 2.460.0000.14.R, build : 2017-07-20
• Main power : 3840 x 2160, 3072 x 2048, 3072 x 1728, 2592 x 1944, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720 • Auxiliary power : 704 x 576, 352 x 288
• Auxiliary current 2 : 1920 x 1080, 1280 x 720, 704 x 576
Lens: 2.7 … 12 mm – Motozoom
Viewing angle:
• 110 ° … 40 ° (manufacturer specs)
• 102 ° … 38° (our test results)
IR illuminator range: 50 m
Signal-to-noise ratio (S/N): > 50 dB
RS-485 Interface: —
Memory card slot: Micro SD cards up to 128GB supported (local storage possible)
Image Compression Method: H.265 / H.264 / MJPEG
Alarm inputs and outputs: 1 / 1
Audio:
• External microphone input
• External microphone input
• Audio output
• Two-way audio supported
• Sound detection
Bitrate:
24 … 10240 kbps @ H.264
14 … 9984 kbps @ H.265
Network Interface: 10/100 Base-T (RJ-45)
Network Protocols:
HTTP, HTTPS, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, 802.1x Radius, Multicast, ICMP, IGMP, SNMP
HTTP, HTTPS, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, 802.1x Radius, Multicast, ICMP, IGMP, SNMP
WEB Server: Built-in
Max. Number of users online: 20
ONVIF: 16.12
Main Stream Transmission Speed:
15 fps @ 8.3 Mpx 20 fps @ 6.3 Mpx 25 fps @ 5.3 Mpx
15 fps @ 8.3 Mpx 20 fps @ 6.3 Mpx 25 fps @ 5.3 Mpx
Access from mobile phone:
Port: 37777 or access via the cloud
Port: 37777 or access via the cloud
• Android: free app gDMSS Lite, Android: free app imou
• iOS (iPhone): free iDMSS Lite app, iOS (iPhone): free imou app
There are also free versions of the mobile app: gDMSS Plus, iDMSS Plus
Access ports via www: 80, 37777
Default IP address: 192.168.1.108
Access ports via app on PC: 37777
Access port via mobile app: 37777 ONVIF Port: 80
RTSP URL:
rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0
rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0
Mainstream
rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1
Auxiliary current
WEB Server: Built-in
Selected features:
• Motozoom lens – control from browser, NVR or software • 3D DNR – Digital noise reduction in the image
• Motozoom lens – control from browser, NVR or software • 3D DNR – Digital noise reduction in the image
• D-WDR – Wide Range of Lighting Dynamics
• ROI – Quality improvement of selected image fragments
• ICR – Mechanical Infrared Filter • BLC – Configurable Rear Light Compensation
• HLC – Compensation of heavy (point) light
• IVS analysis : crossing the line, intrusion, lost/missing object, change of scenery, facial recognition
• Sound detection
• Day/night mode (color/b&w/auto)
• Configurable private zones
Power supply:
• PoE (802.3af), • ePoE,
• PoE (802.3af), • ePoE,
• 12 V DC / 710 mA
Power consumption: ≤ 8.5 W
Housing: Dome – Metal
Color: White
Tightness class: IP67
Vandal-proof: IK10
Working temperature: -30 °C … 60 °C
Weight: 0.6 kg
Dimensions: Ø 122 x 104 mm
Supported languages: English, Polish
Manufacturer/Brand: DAHUA
