Item Specifics

• LCD display 16 characters, 2 lines
• Status LEDs 5
• Fieldbus E-Bus
• Tamper contact front & rear
• Supply voltage via e-bus
• Operating voltage : 9 – 15 VDC
• Power consumption: Minimum : 13 mA
• Power consumption: Maximum : 73 mA
• Operating Temperature : 0 ~ +55 C
• Relative humidity : < 93% non-condensing
• Degree of protection : IP30
• Environmental class ll
• Housing material : ABS
• Color : RAL9002
• Dimensions (W x H x D) : 170 x 110 x 30 mm
• Weight : 0,220 kg
• Approval : NF & A2P 3 boucliers, CE compliant

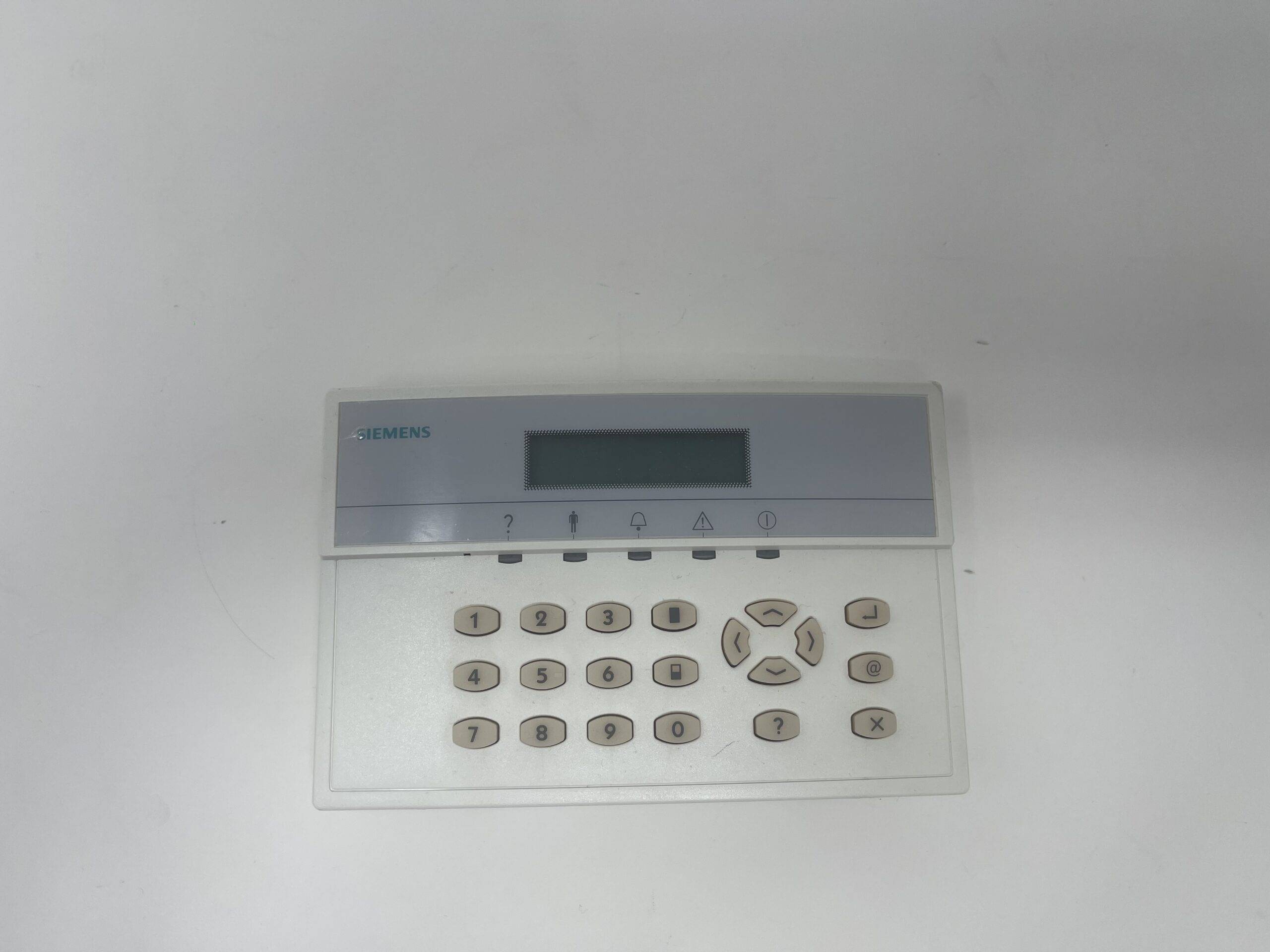

  Siemens LCD Control Panel SAK51
