Transceiver hilock 213 GR10 white

Transceiver

hilock 213 GR10 white

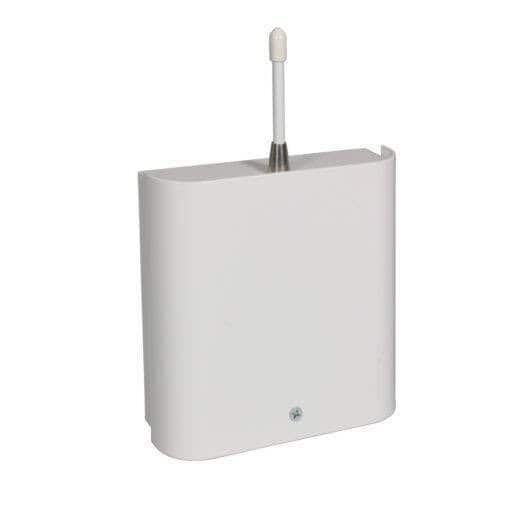

Hilock 213 GR10 transceiver with
external rod antenna.
The external rod antenna enables a
significantly better radio range on
critical mounting surfaces (e.g.
metallic background).

The electronic knob module sends the
transponder data from its RFID
reader unit to the transceiver via the 868 MHz
radio link. This
represents the link between
the hilock 2200
digital locking cylinder and the EMZ, as it is connected to the EMZ via the com2BUS
. This means that the hilock 213 GR10 transceiver can
be mounted
up to
1000 m away from the EMZ.
One hilock 2200 digital
locking cylinder is managed per transceiver.
The hilock 213 GR10 transceiver has
3 detector group inputs and 1
parameterizable output. Of these, one detector group can be
reset to
connect glass break detectors.
The other detector groups can be used, for example:
magnetic contacts and strike plate contacts
.
