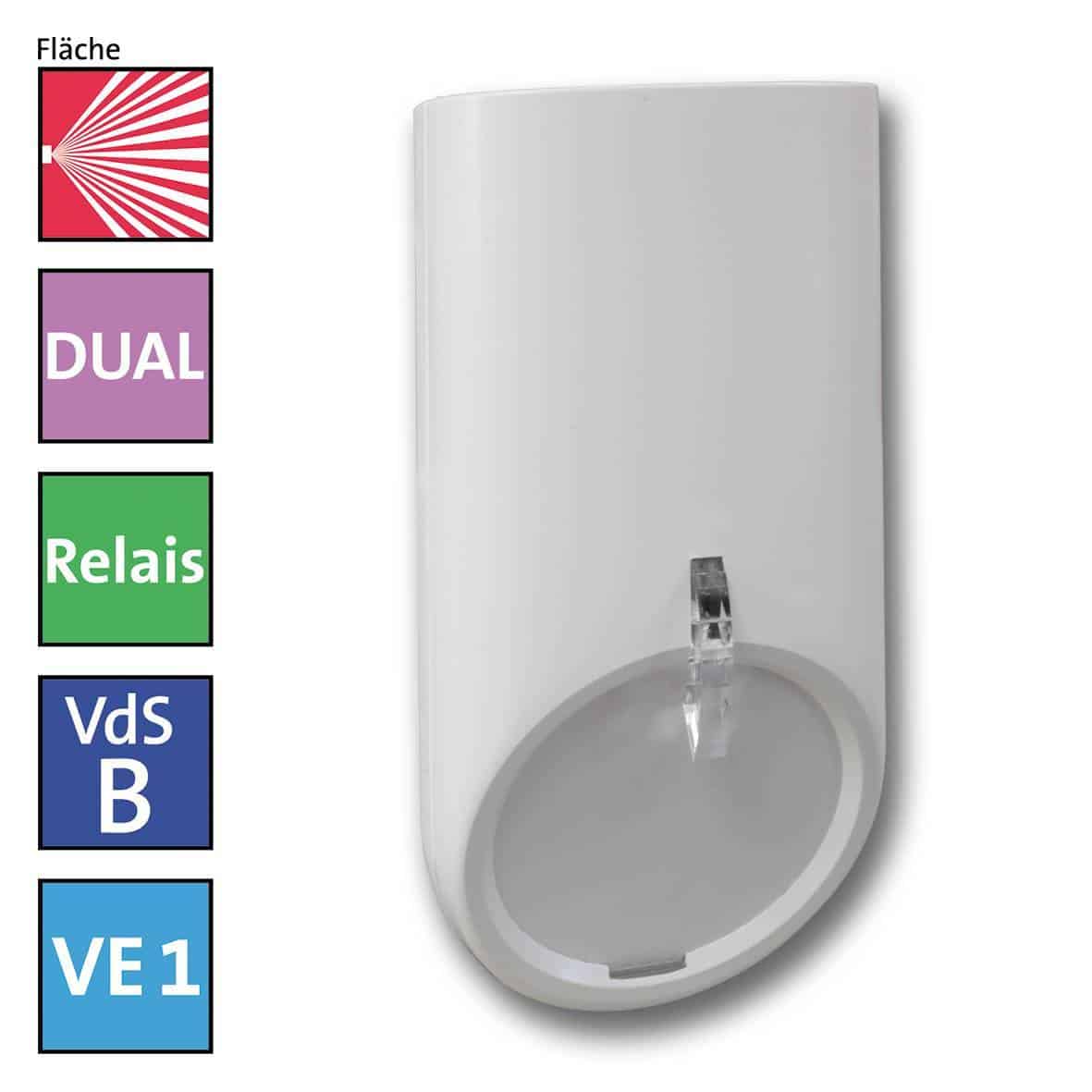

comstar VAYO pro DUAL B10 IR-MW motion detector

IR-MW Motion Detector

comstar VAYO pro DUAL B10

VSÖ class GS-N (GS-N 160215/20 E)
VdS class B (G 114533)
EN 50131-2-4: Grade 2

The comstar VAYO pro DUAL
infrared microwave
motion detector is used to monitor indoor spaces
with critical environmental conditions.
It detects infrared heat radiation via its mirror optics
, such as
is emitted
by the human body.
The additionally built-in
microwave detector detects movements according to the
Doppler principle. The microcontroller
links both systems, which work according to
completely different physical
properties.

The microprocessor-controlled
Signal processing XTRAP technology
(Extended Threshold Regulated Algorithm
with Powermanagement) in combination
with the digital pyro element offer
excellent false alarm protection and
excellent detection properties.
Alarm criteria are distinguished from faults in a highly efficient
manner.
At the same time, power consumption is reduced to
a minimum.
The pulsed microwave drastically
reduces the
power consumption of the DUAL motion detectors
compared to other detectors and prevents interference with
WLAN networks.
At the
same time, there is no microwave exposure when the detector is out of focus because
the microwave is switched off.

With a design cover, the
detector can be adapted to the requirements of the
respective interior design
. The design
cover is placed on the
comstar VAYO pro detector using click technology.

The detector meets all the current
requirements of the European standard EN
50131-2-4.

The comstar VAYO pro DUAL B10 is intended for
connection in conventional
line technology.
