Intrusion alarm panel hiplex 8400H GR104 / BT 820

Intrusion alarm panel hiplex 8400H GR104 / BT 820

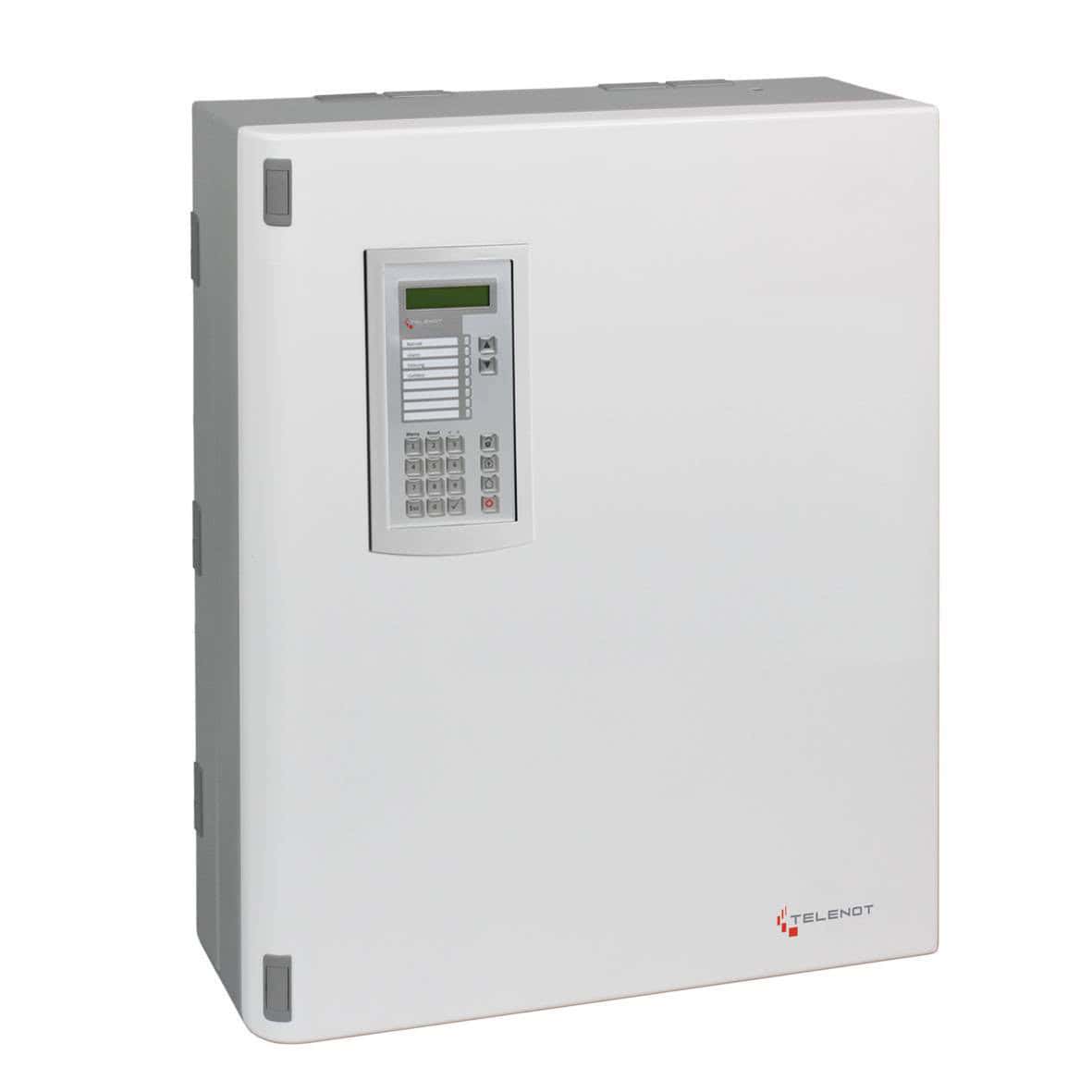

VSÖ-Class WS (W 170918/03 E) Switchgear VSÖ-Class WS (W 170918/02 E) Burglar Alarm Panel VdS-Class C (G 117001) Burglar Alarm Panel VdS-Class C (G 117002) Switchgear EN 50131-3: Grade 3 The hiplex 8400H is an intrusion alarm panel in accordance with the provisions, regulations and guidelines DIN EN 50131 Grade 3, VdS Class C, VDE 0833 and the ÜEA guidelines of the police. The burglar alarm control panel is suitable for use in commercial, industrial and private sectors. Different housing types are available for the different expansion stages. In addition to its function as a switching device, the reader interface for connecting comlock/cryplock readers can also be used for access control. The burglar alarm control panel is installed in a sturdy, sealable sheet steel housing with cable entries. The power supply 12 V / 34 Ah is integrated on the central board. A mounting station is available for the installation of a TELENOT transmission device. With the BuildSec 4.0 alarm system app, it is possible to operate and display operating states in the burglar alarm control panel via smartphone and tablet. Supported operating systems are iOS and Android. Using the parameterization software hipas-User, customers, operators and security services can display and edit functions such as groups of people or personal authorizations or read out the event memory. Hiplex 8400H intrusion alarm control panel in GR104 housing type with BT 820 control panel. The rotatable back panel allows the cables to be inserted from below or above. For tamper detection when removing the mounting surface, a breakaway detector is available as an accessory.
