Lageplantableau DIN A2 LMT 2/77 S

Lageplantableau DIN A2

LMT 2/77 S

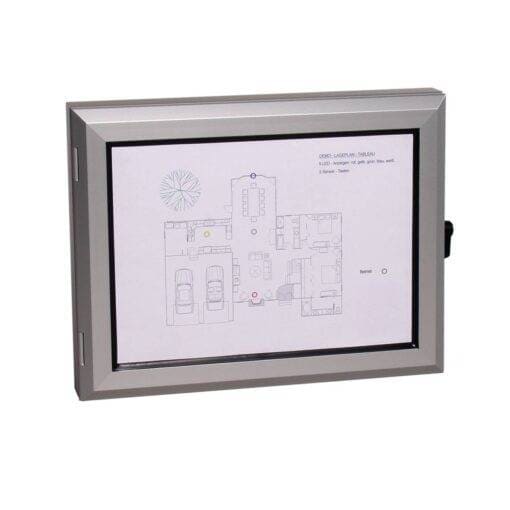

The Lageplanableau enables the
Quick and individual design
of a display for the reporting points and
reporting areas of the
intrusion alarm control panel complex
200H/400H.
Behind the windshield of the
In the form of a copy or drawing on translucent plain paper or foil, the site plan is
printed in the form of a copy or
drawing on translucent
plain paper or foil for the graphical
representation of the reporting points or reporting points.
Reporting areas attached.
Super-bright LEDs illuminate the
site plan in the appropriate places.
Mounting the LEDs in a
prefabricated hole grid is
particularly simple and time-saving.
Up to 8 LTE 400 receiver boards, each with
up to 32 LEDs, can be connected to the
com2BUS of the complex 200H/400H intrusion detector panel
.

DIN A2 storage platform for max
. 8 LTE 400 LTE
receiver boards.
