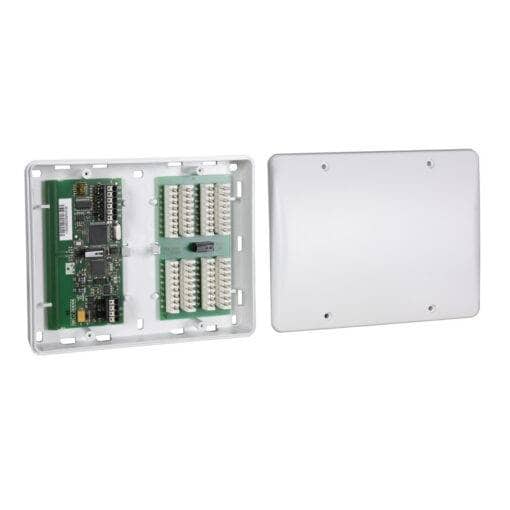

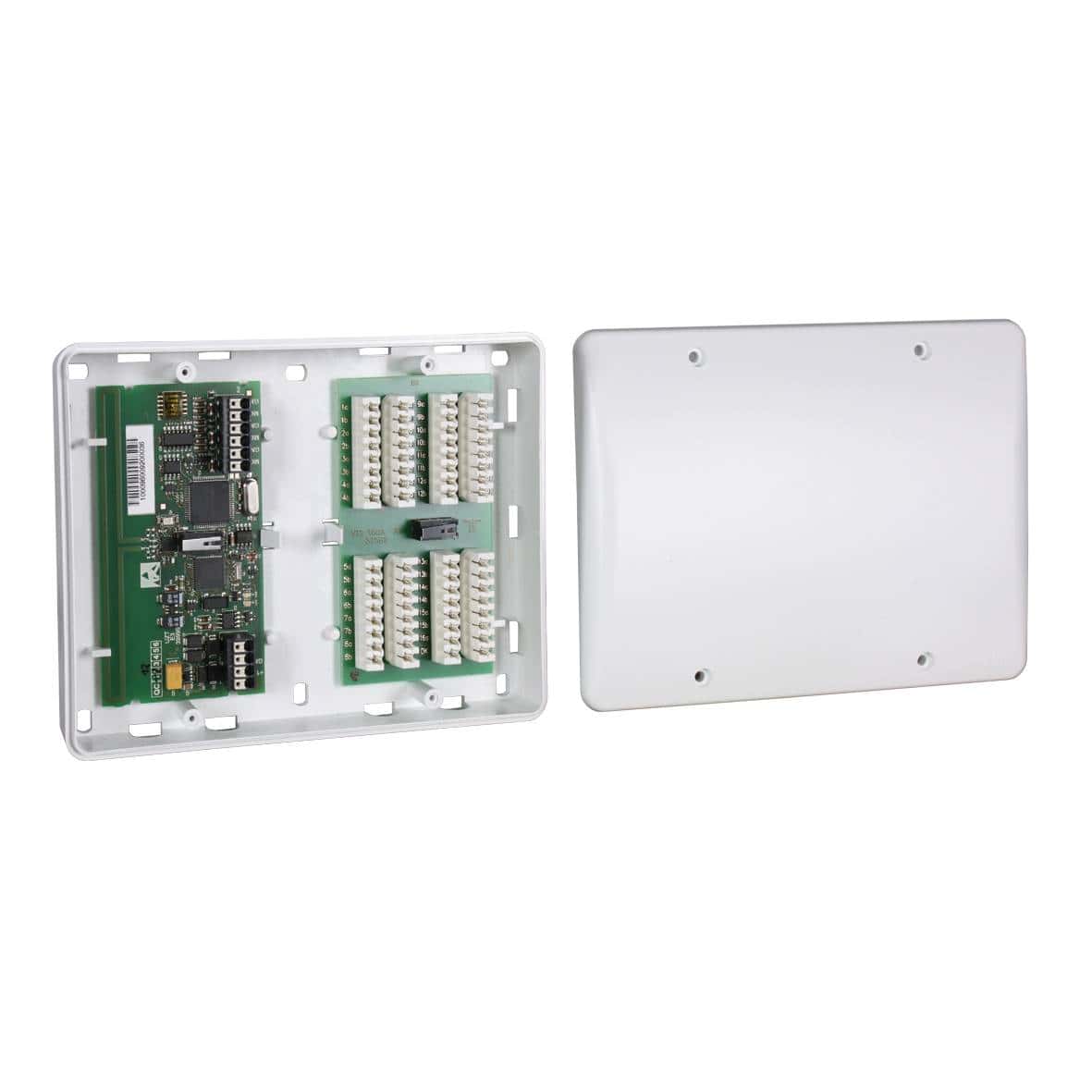

Transceiver in housing type K30 hilock 203 with LSA-Plus Vert.

Transceiver in housing type K30

hilock 203 with LSA-Plus Vert.

Hilock 203 transceiver and
distribution panel in LSA-Plus
connection technology 16 DA in housing type
K30 for surface mounting.
The electronic knob module sends the transponder data of its RFID
reader unit to the
hilock
203 transceiver via the 868 MHz
radio link. This represents the link
between the hilock 2200 digital locking cylinder
and the EMZ, as it is connected to the EMZ via
the com2BUS.
This means that the hilock 203
transceiver can be mounted up to 1000 m away
from the EMZ.
Alternatively, the hilock 203 transceiver
can be connected to the
UFM 260
universal radio module via the com2BUS. This means that the
hilock 203 transceiver is connected to the EMZ by
radio via the
DSS2 wireless safety system.
One hilock 2200 digital locking cylinder is
managed per hilock 203
transceiver.
The hilock 203 transceiver has three
detector group inputs. Of these, one
detector group can be reset to connect
glass break detectors. The other
detector groups can be used, for example:
magnetic contacts and strike plate contacts
.
