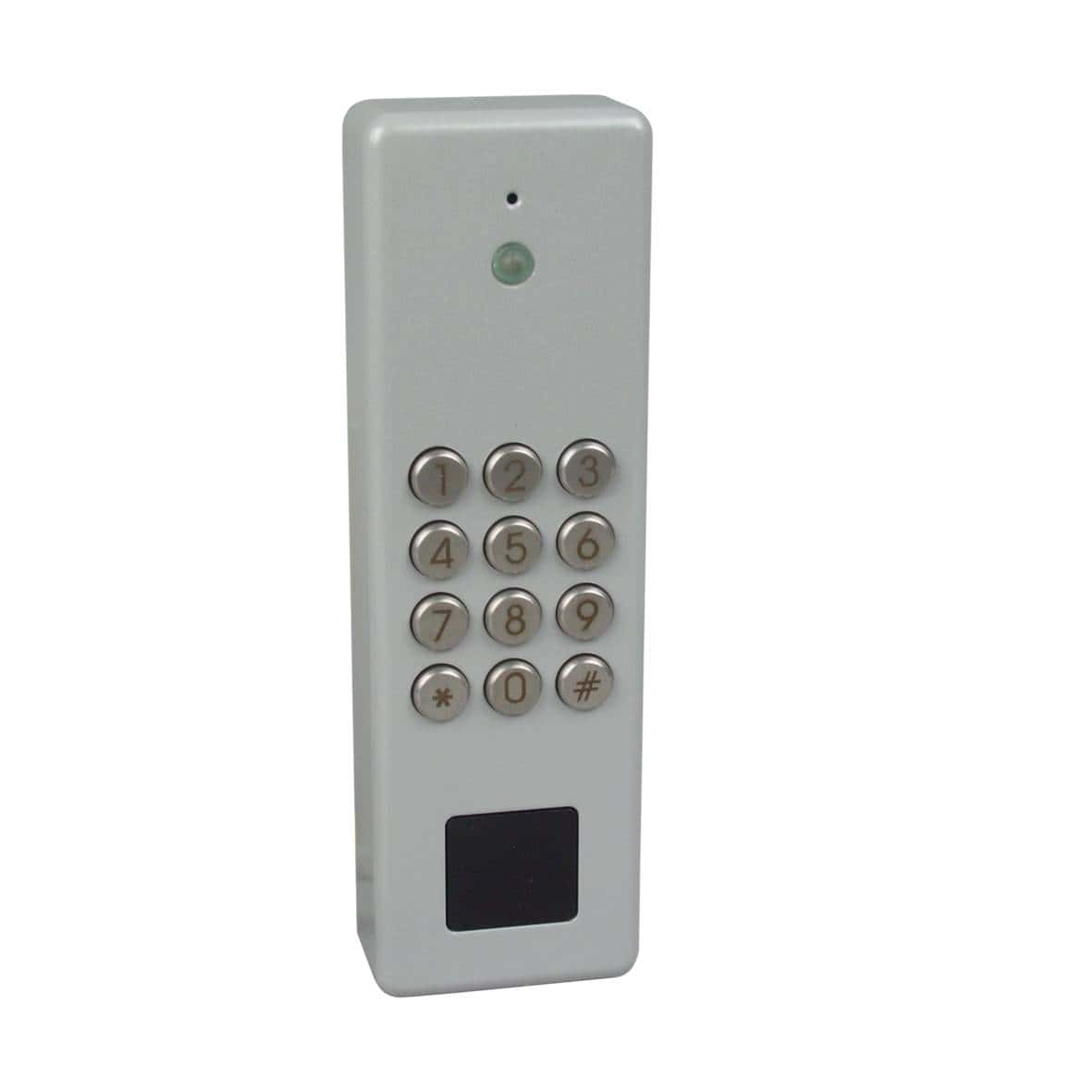

comlock HF/Keyboard Reader R/K-EHD silver (powder-coated

comlock HF/keyboard reader

R/K-EHD silver (powder-coating)

The comlock readers are used for the
contactless identification of
transponders and, optionally, a freely
parameterizable keypad code.

The compatibility
between transponder, reader and
evaluation unit can be found on the
TELENOT website at:
Downloads /
Switchgear/Access control /
comlock/cryplock reader.

The comlock readers can be connected to the following
devices:
– intrusion alarm panels of the complex 200H/400H series
,
– hiplex 8400H burglar alarm panels,
– comlock 410 door module,
– comlock 1030
switching module (unencrypted),
– comlock 3000 evaluation unit for
access control (encryption on
request),
– FWA-BM basic module (unencrypted).

The operating states are signaled directly on the
reader by a duo LED and a
piezo signal transmitter.

An authorized transponder activates
the keyboard reader contactlessly
and/or by entering a freely
parameterizable keyboard code.
Flush-mounted
mounting sets consisting of
a plaster-in box, mounting frame and
cover panel are available for flush-mounted installation.
